33KV High Voltage Disconnect Switch

Ask Lasest Price
Brand Name :	xk
Model Number :	HGW9-33KV/630A
Certification :	TYPE TEST REPORT
Price :	negotiable
Payment Terms :	T/T, LC
Supply Ability :	1000 set/month
Delivery Time :	15-30 days

Add to Cart

Product Details
Company Profile

33KV High Voltage Disconnect Switch

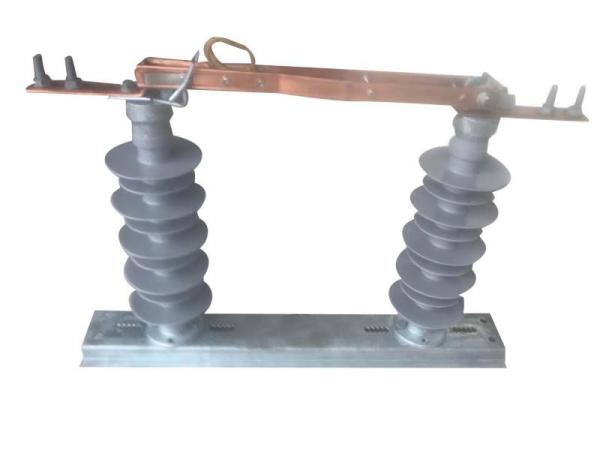

33KV polymer disconnecting switch HGW9-33KV/630A

Product Description

Advantages:

Maintenance-free contact system without spring elements
Outstanding price-performance ratio
Operational under all severe climatic conditions, including in coastal regions and areas with dramatic temperature differences, high risk of ice formation or strong seismic activity
Type-tested according to IEC
Quality control system certified according to ISO 9001
Delivery of completely routine-tested and pre-adjusted assemblies simplifies setup and commissioning
Life-time technical support and service on short notice

Item			Unit	Data
Rated voltage			KV	40.5/72.5/126
Rated lnsulating level	1min power fequncy voltage withstand	To earth	KV	95/140/230
		Fracture	KV	115/160/245
	lmpulse voltage withstand	To earth	KV	185/325/550
		Fracture	KV	215/375/630
Rated frequency			HZ	50
Rated current			A	630/1250/1600/2000
Rated short time current withstand			KA	20/31.5/40/40
Rated peak current withstand			KA	50/80/100/100
Rated short circuit cont.current:Mian/earth blade			S	4/2

Rated teminal mechanical load		Vertical	N	750/1000
		Horizontal	N	500/750
		Vertical Force	N	750/1000
Creepage distance			MM	1013/1256,1813/2248,3150/3906
Mechanical life			Times	2000
Manual operating mechanism	Model			CS17,CS17G
	Voltage of control circuit		V	AC220 DC110 DC220
Electic operating mechanism	Voltage of motor		V	AC380 DC220 DC220
	Voltage of control circuit		V	AC220 DC110 DC220

GW5 series outdoor 33kv high voltage load break disconnect switch isolator

Rated volt	A	A1	H	E	C	D
40.5	1200	1075	1070	1400	240	300
72.5	1600	1285	1295	2200	240	300
126	2000	1660	1695	3000	240	300

GW5 series outdoor 33kv high voltage load break disconnect switch isolator
