Product Description

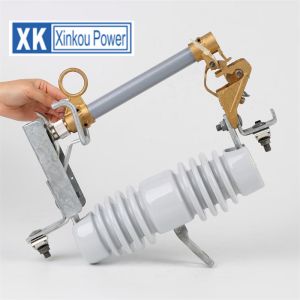

Three types of Drop out fuses for protection in distribution &
transmission line are manufactured by us.
Bracket type
Channel mounting type
Single solid core insulator type.
The main characteristics of Drop-out fuses are as under:
Available ratings : 11, 22 & 33kV.
Current rating : 50 to 200Amps.
Vertical mounting type
Confirms IS: IEC
After removing the fuse barrel by an operating pole, fuse wire can
be replaced.
| Type | 11KV DOFC/100 | 11KV DOFC/200 |
| Rated Voltage(kV) | 10-15 | 10-15 |
| Rated current(A) | 100 | 200 |
| Breaking current(A) | 10000 | 12000 |
| Impulse voltage(kV) | 110 | 110 |
| Power frequency wihstand voltage(kV) | 42 | 42 |
| Creepage distance(mm) | 250 | 250 |
| Weight(kg) | 7 | 7 |
| Dimensions(CM) | 38.5*34.5*10.5 | 38.5*34.5*10.5 |
11kv drop out fuse cutout high voltage fuse for microwave oven
microwave high voltage fuse
Company Information
INTRODUCTION
Zhejiang Xinkou Power Equipment Co.,Ltd, is a high-tech enterprise
specializing in developping, design, manufacture, sales, import and
export of low voltage and high voltage electrical products.
Company main products: indoor and outdoor high voltage vacuum
circuit breaker, load break switches, disconnecting switches, drop
out fuse cutour, lightning arrester, etc. All products comply with
the requirements of GB, IEC, ANSI and other international standard.
